The aircraft propeller blades are manufactured from composite materials. The main components are fiberglass and carbon materials, and epoxy as the binding agent.

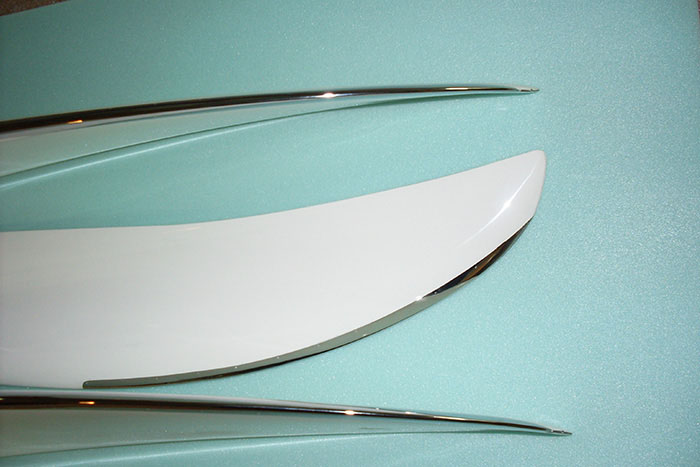

The leading edge is protected by metallic stainless steel binding, which provides damage protection and significantly prolongs the propeller’s life.
The propeller is a crucial part of the propulsion system, and many flight and performance qualities depend on how well it suits the engine. Based on our experience, we offer you several options of propeller use.
Specifications of propellers by type, power and engine types
Warranty – 12 months since the day of purchase.
Assigned operating time – 600 hours.
If there’s a need to replace one or several blades, you can simply tell us its type and number. The metallic binding is also replacable. Repairs are made in shortest possible times.
The packaging of the variable pitch propeller:
The packaging of the fixed pitch propeller:
A nose cap can be included with the propeller.
Diameter: 202 mm (~7.95″), length: 215 mm(~8.46″), central opening: 47 mm(~1.85″) or 25,5 mm(~1.00″). Only for 2-, 3- and 4-blade propellers.
Propeller extenders(65 mm, ~2.56″) for Rotax 912.
We also manufacture propellers for air baloon inflation fans.
